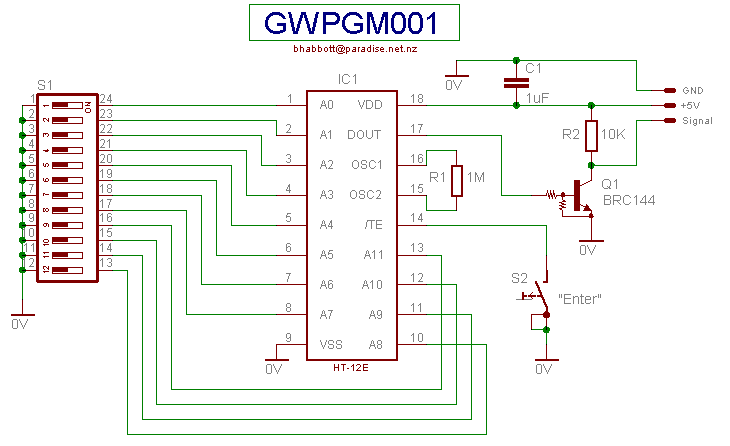

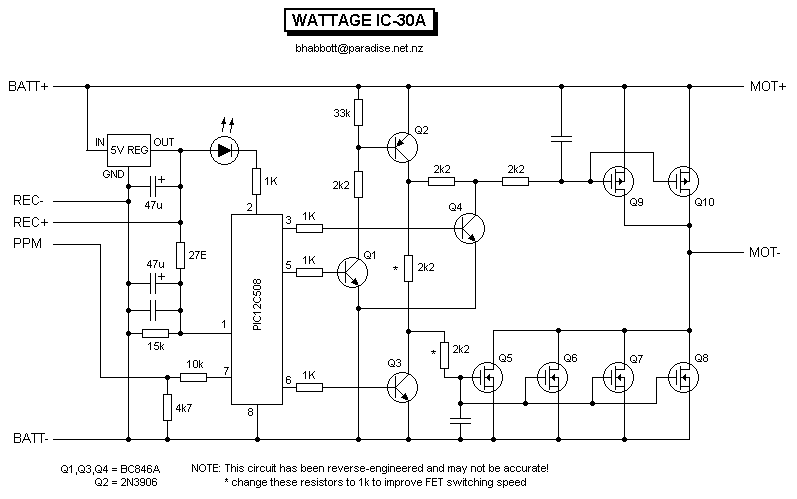

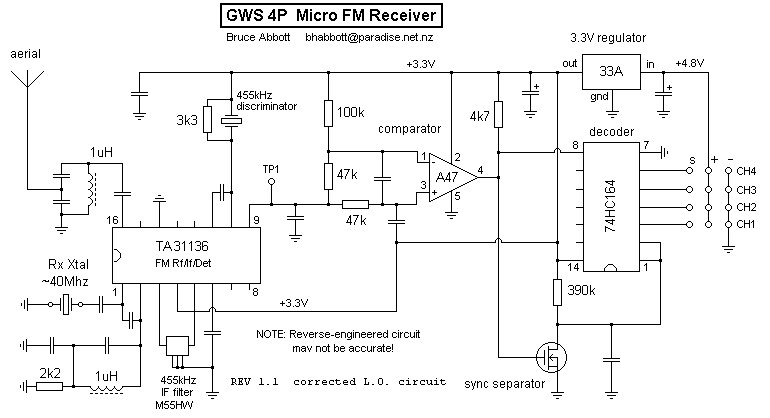

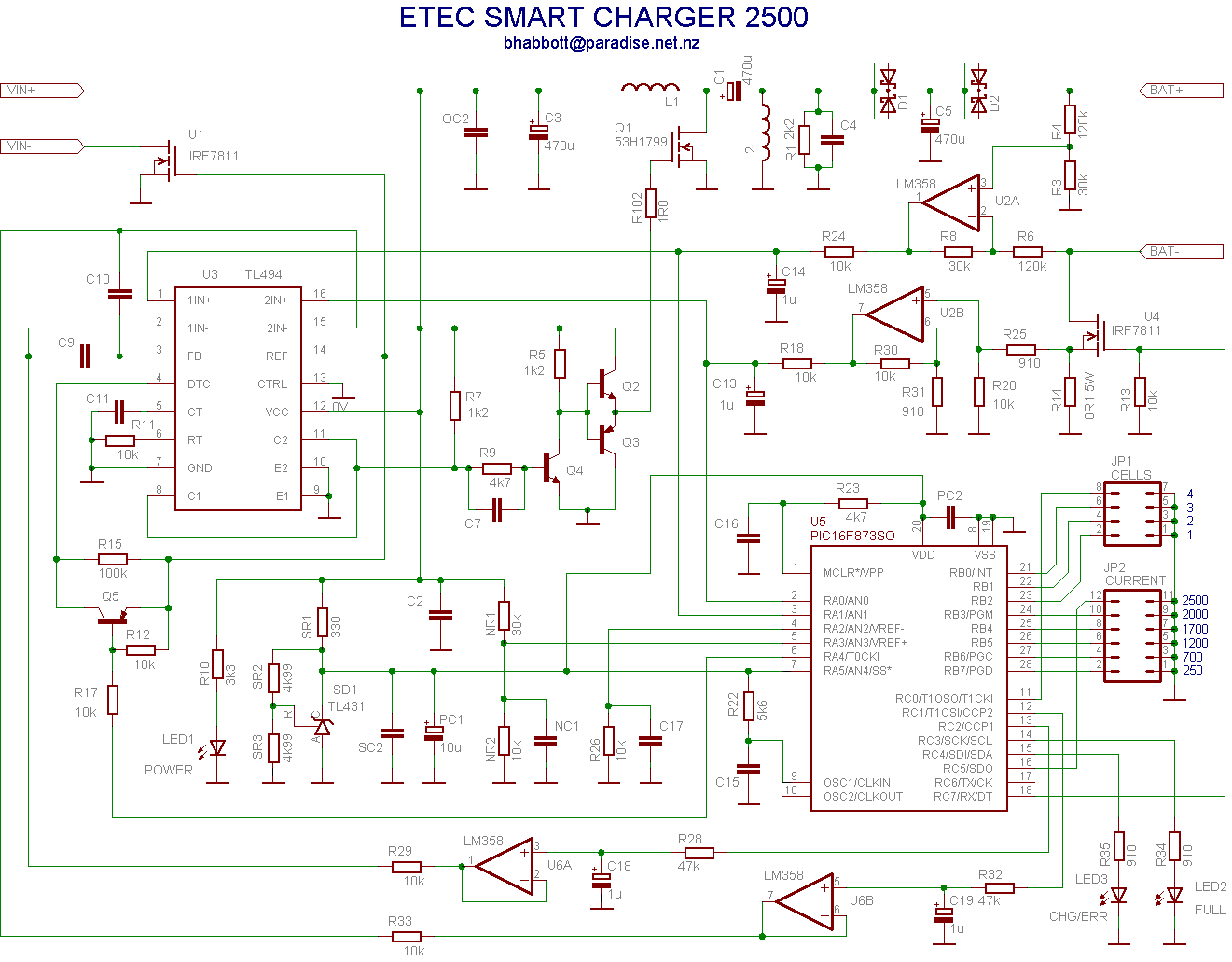

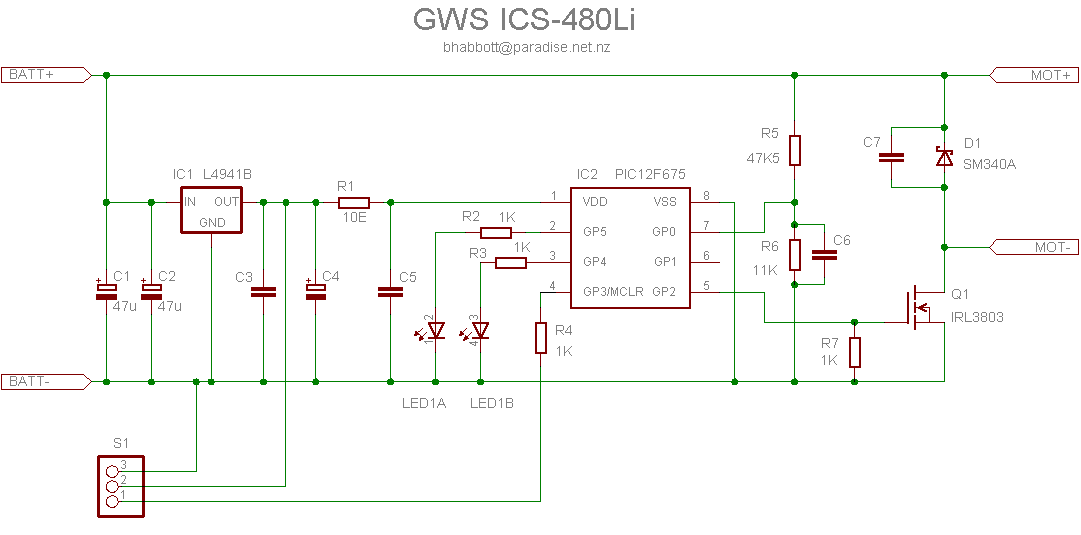

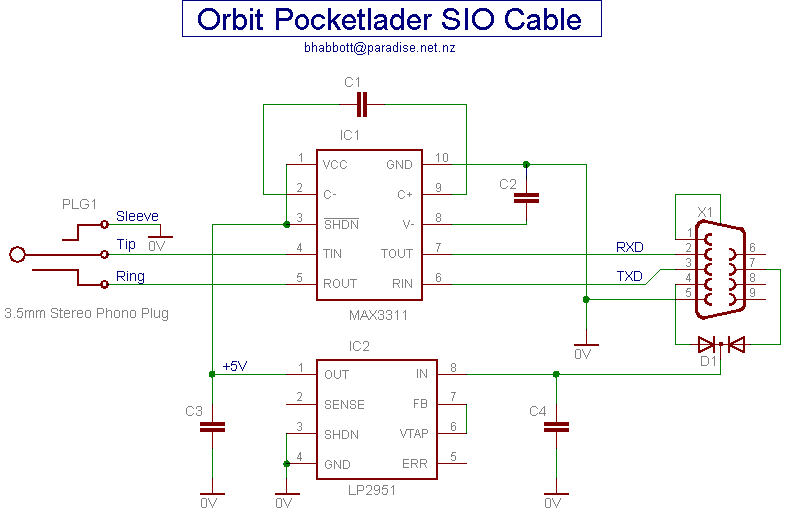

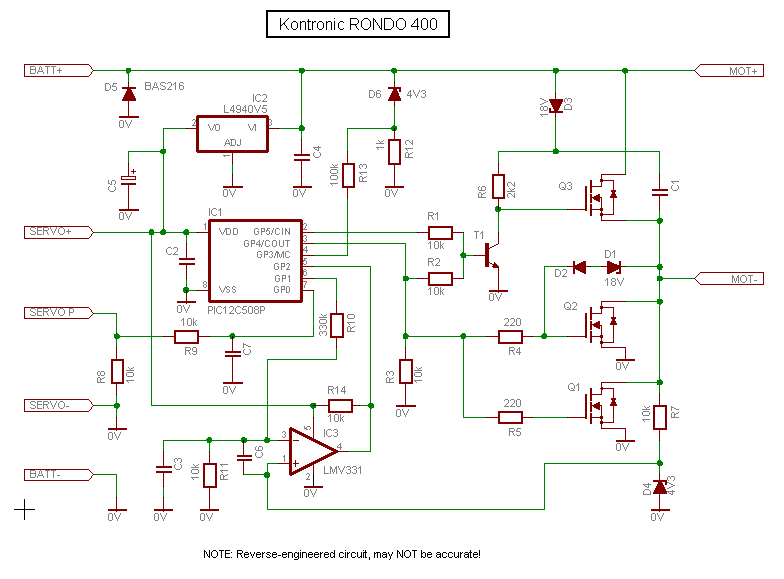

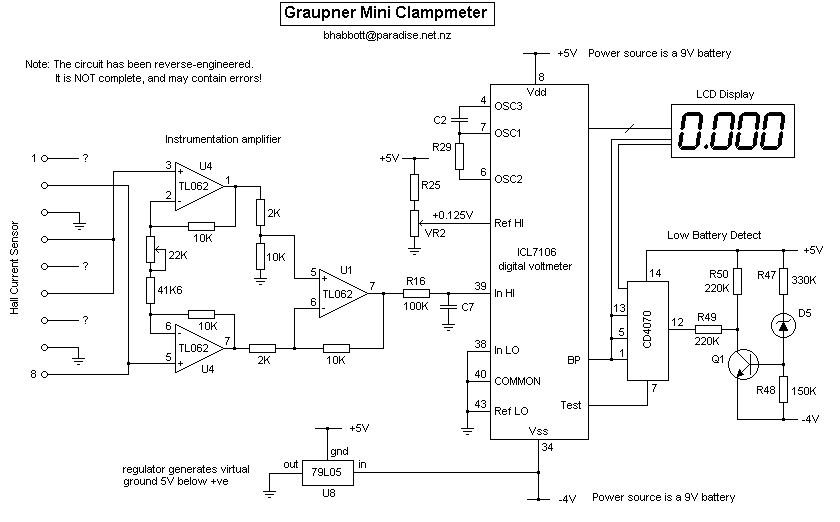

Reverse-engineered Circuit Diagrams

These are some circuits I have traced to aid fault diagnosis, or just to 'see how it works'. Do not assume that they are accurate or complete! Often I only trace the part of a circuit that I am interested in.
