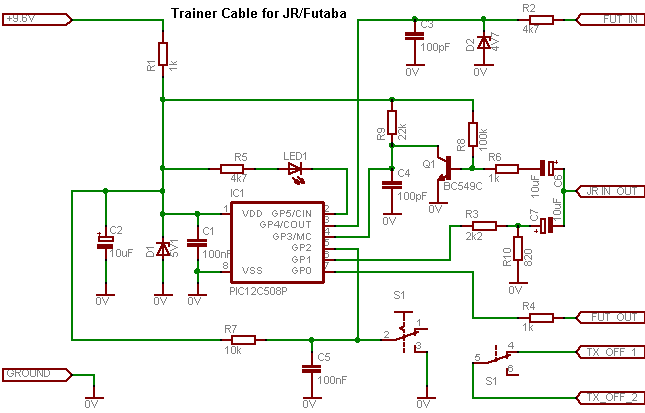

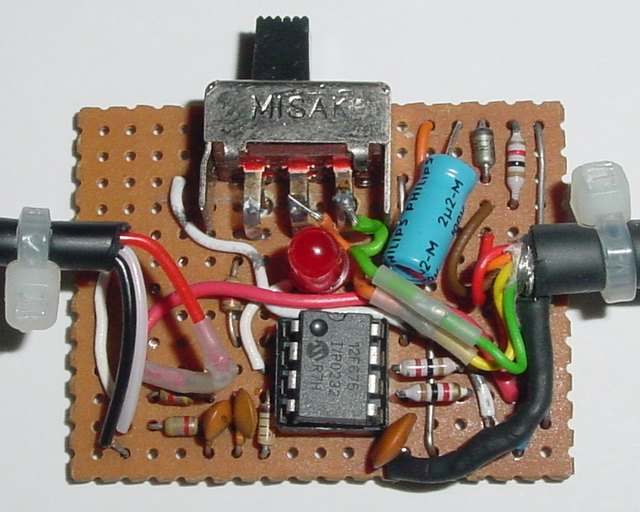

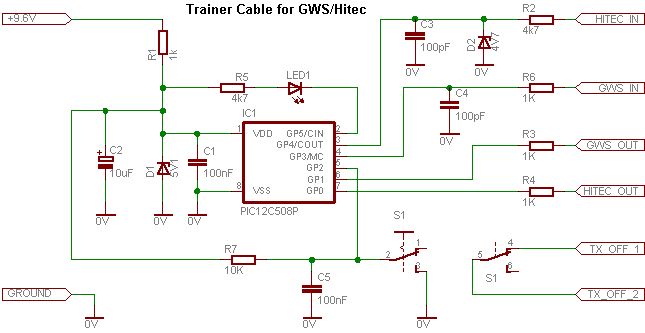

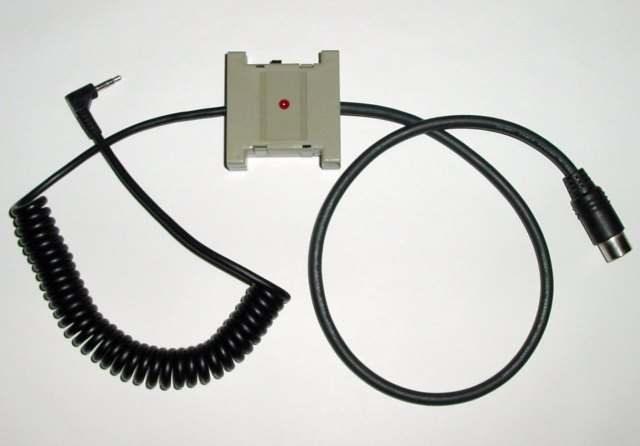

Futaba/Hitec transmitters cannot be linked to JR/Airtronics/GWS transmitters with a simple cable, because channel assignments, shift, and voltage levels are different. This project uses a PIC microcontroller to re-order the channels (4 channels maximum) and generate the required signal. A two position switch selects which transmitter is the Teacher, and which is the Student.
|
|
Connector wiring: coming soon!
Source code for PIC12C508/9 or 12F629/75
HEX files for PIC12C508/9 or 12F629/75
