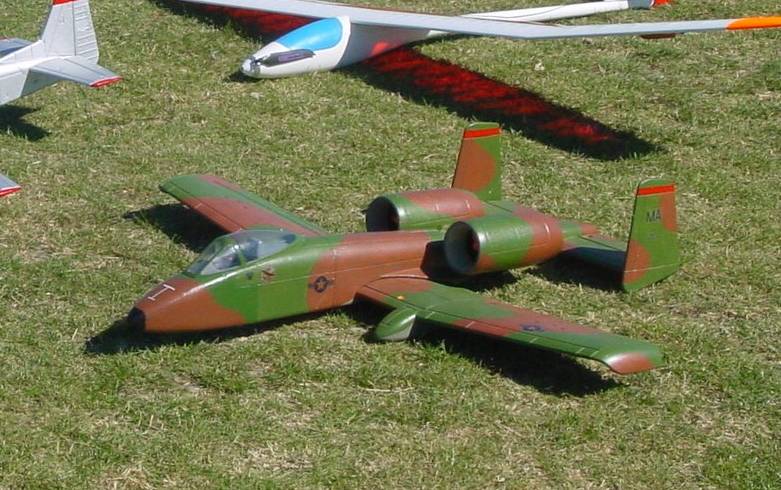

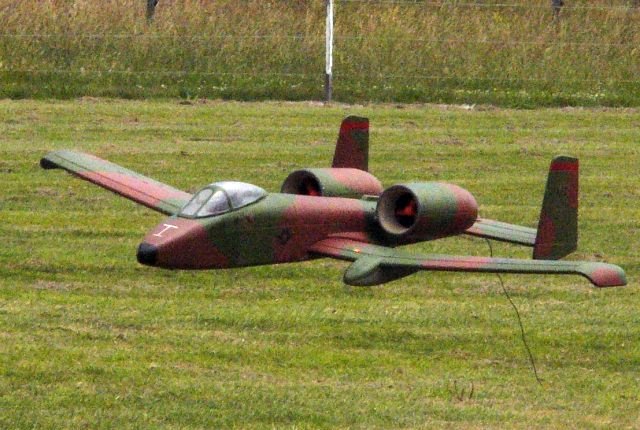

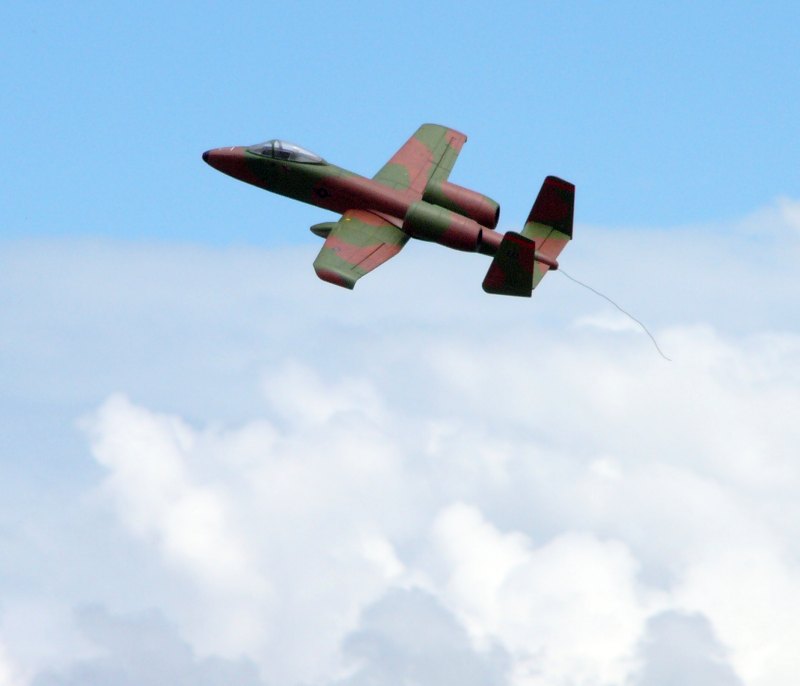

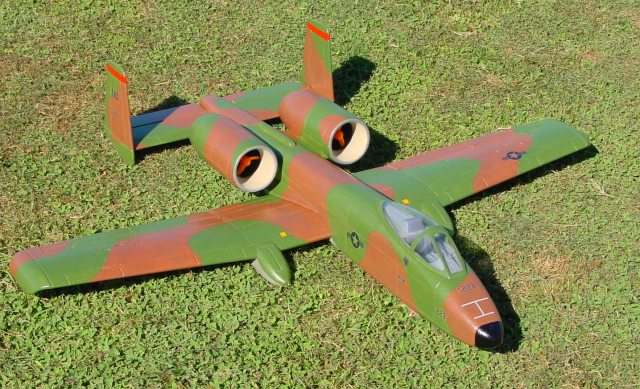

A10 Thunderbolt II

GWS kit

Specifications

Wingspan 872mm (34.3 inches)
Wing Loading 28g/dm2 (9.1 oz/sqft)
Flying Weight 395g (13.9oz)
CG (percent of MAC) 66mm from L.E. (37%)
Power Loading 150W/Kg (68W/lb)
Motor 2 x Feigao 5800Kv 12mm inrunner brushless motors
Propeller 2 x EDF50A 3 blade Ducted Fan
Speed Control Towerpro Mag-8 12A x 2
Battery 1000mAh 2S Lithium Polymer (7.4V)
Receiver Hitec HFS-05MS
Servos 2 x GWS Pico
Controls Ailerons (±15°), Elevator (±10°), Motor
Construction Expanded Polystyrene Foam
