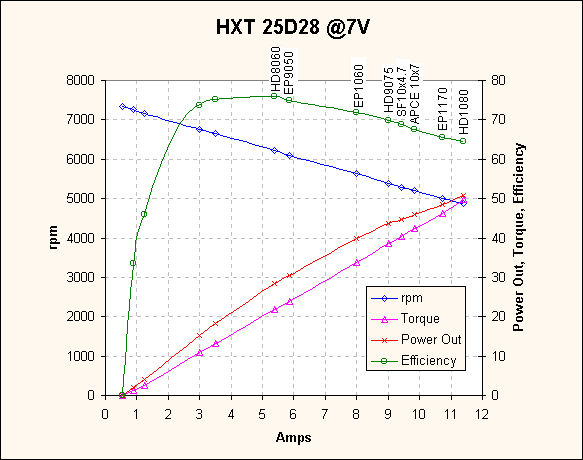

| Prop | Volts | Amps | rpm | Watts | Efficiency |
| - | 7.0 | 0.6 | 7330 | 3.8 | 0% |
| APC SF7x4 | 7.0 | 3.0 | 6765 | 21 | 74% |
| GWS EP8040 | 7.0 | 3.5 | 6652 | 24 | 75% |
| GWS HD8060 | 7.0 | 5.4 | 6215 | 37 | 76% |
| GWS EP9050 | 7.0 | 5.9 | 6103 | 41 | 75% |
| GWS EP1060 | 7.0 | 8.0 | 5630 | 56 | 72% |
| GWS HD9075 | 7.0 | 9.0 | 5392 | 62 | 70% |
| APC SF10x4.7 | 7.0 | 9.4 | 5291 | 65 | 69% |
| APC E10x7 | 7.0 | 9.8 | 5194 | 68 | 68% |
| GWS EP1170 | 7.0 | 10.7 | 5008 | 74 | 65% |
| GWS HD1080 | 7.0 | 11.4 | 4879 | 79 | 65% |

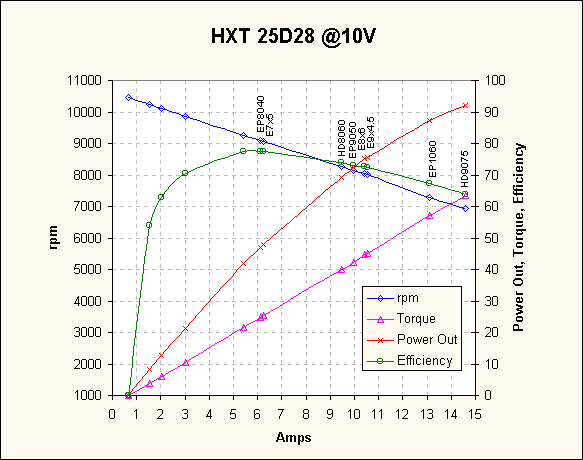

| Prop | Volts | Amps | rpm | Watts | Efficiency |
| - | 10.0 | 0.7 | 10450 | 6.8 | 0% |
| APC SF7x4 | 10.0 | 5.4 | 9263 | 54 | 78% |
| GWS EP8040 | 10.0 | 6.1 | 9093 | 61 | 77% |
| APC E7x5 | 10.0 | 6.2 | 9065 | 62 | 78% |
| GWS HD8060 | 10.0 | 9.5 | 8278 | 94 | 74% |
| GWS EP9050 | 10.0 | 10.0 | 8154 | 99 | 73% |
| APC E8x6 | 10.0 | 10.4 | 8034 | 103 | 73% |
| APC E9x4.5 | 10.0 | 10.5 | 8020 | 104 | 72% |
| GWS EP1060 | 10.0 | 13.1 | 7285 | 130 | 67% |
| GWS HD9075 | 10.0 | 14.6 | 6923 | 144 | 64% |
