GWS EM300H

Comments

This is a Mabuchi RK370SD with a 45 turn armature. Brushes are timed for forward (CCW) rotation. Relatively low Kv makes it suitable for driving small props on 6 to 8 Nicads or 2 lithium cells. It can also be geared for use with large props on 3 lithiums cells (note: timing should be adjusted if motor is to be run in reverse).

prop type size Volts Amps Watts rpm thrust(g) Graupner 4x2x3 5.62 4.3 24.0 15870 127     6.71 5.4 36.3 17870 168 GWS 4x2.5 5.62 4.2 23.6 15800 125     6.72 5.3 35.6 18100 163     7.84 6.2 48.6 19900 197 GWS 5x3 5.50 5.6 30.8 13370 180     6.56 7.1 46.5 15000 223 APC 5.7x3 5.35 7.3 38.8 11280 180 Gunther 4.9x4.3 5.31 7.7 40.7 10600 174

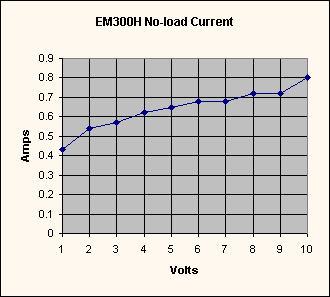

Kv 3860 rpm/V Io 0.7 Amps Rm 0.37 Ohms
