GWS 2208/18T
| Prop | Volts | Amps | rpm | thrust(g) | Watts |
| PQ-1500HG-2S, GWS ESC-25A | |||||
| none | 8.0 | 0.4 | - | - | 4.0 |
| GWS EP6030 | 7.8 | 1.6 | 8149 | 98 | 12.1 |
| GWS EP8040 | 7.5 | 3.8 | 6936 | 243 | 28.1 |
| GWS EP8043 | 7.4 | 4.3 | 6626 | 268 | 31.8 |
| GWS HD8060 | 7.3 | 5.3 | 6087 | 256 | 38.4 |
| GWS EP9050 | 7.3 | 5.7 | 5961 | 335 | 41.0 |
| GWS EP8060 | 7.2 | 5.8 | 5883 | 293 | 40.1 |
| GWS EP9047 | 7.2 | 5.9 | 5772 | 328 | 42.2 |
| GWS EP1060 | 7.0 | 7.0 | 5164 | 364 | 48.0 |
| GWS HD9075 | 7.0 | 7.5 | 4959 | 286 | 51.8 |
| GWS EP9070x3 | 7.0 | 7.9 | 4717 | 326 | 54.2 |
| GWS EP9070 | 6.9 | 8.0 | 4714 | 320 | 54.9 |
| GWS EP1047 | 6.9 | 8.2 | 4545 | 399 | 56.2 |
| ET-1250HP-3S, GWS ESC-25A | |||||
| GWS EP7035 | 11.0 | 3.7 | 10680 | 281 | 40.7 |
| APCSF 7x4 | 10.9 | 6.3 | 9532 | 395 | 68.7 |
| GWS EP8040 | 10.5 | 6.5 | 9022 | 447 | 67.7 |
| APCE 7x5 | 10.4 | 6.6 | 8920 | 352 | 68.1 |
| GWS HD8060 | 10.1 | 8.8 | 7682 | 435 | 88.4 |
| GWS EP9050 | 9.9 | 9.0 | 7384 | 547 | 97.5 |
| GWS EP1060 | 10.0 | 11.3 | 6418 | 599 | 113.0 |
| GWS HD9075 | 9.9 | 11.9 | 5935 | 442 | 117.2 |
| GWS EP9070x3 | 9.8 | 12.1 | 5606 | 504 | 118.1 |
| GWS EP9070 | 9.9 | 12.2 | 5658 | 502 | 120.2 |
| APCSF 10x4.7 | 9.8 | 12.5 | 5594 | 615 | 122.5 |
| GWS EP1047 | 9.8 | 12.7 | 5544 | 630 | 124.5 |
|
|

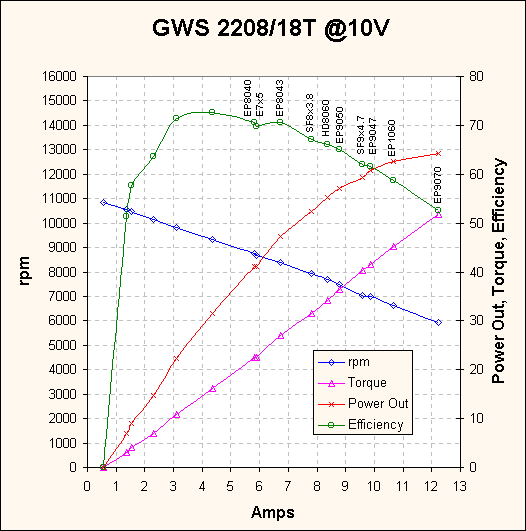

Dyno Test Results
